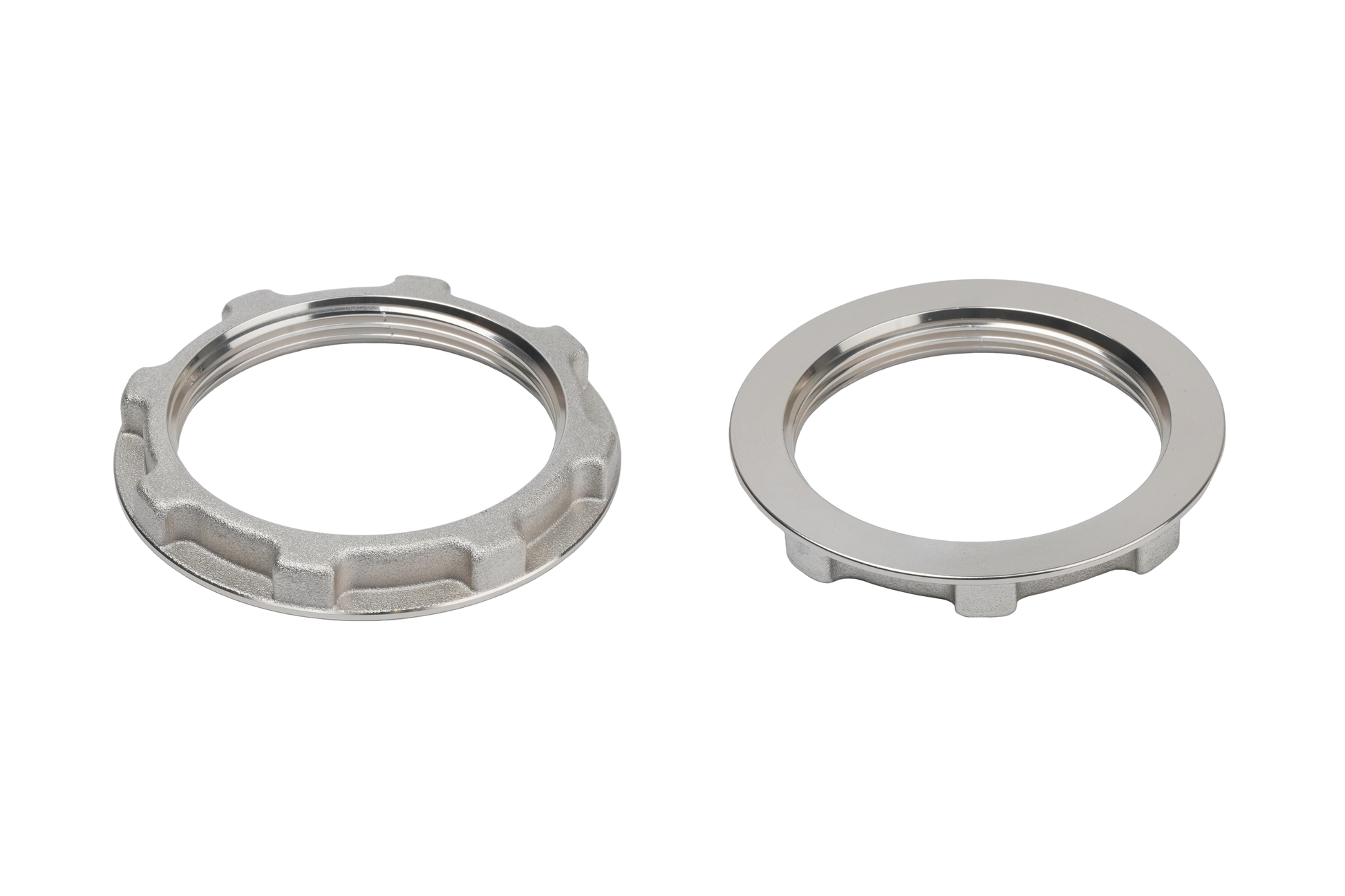

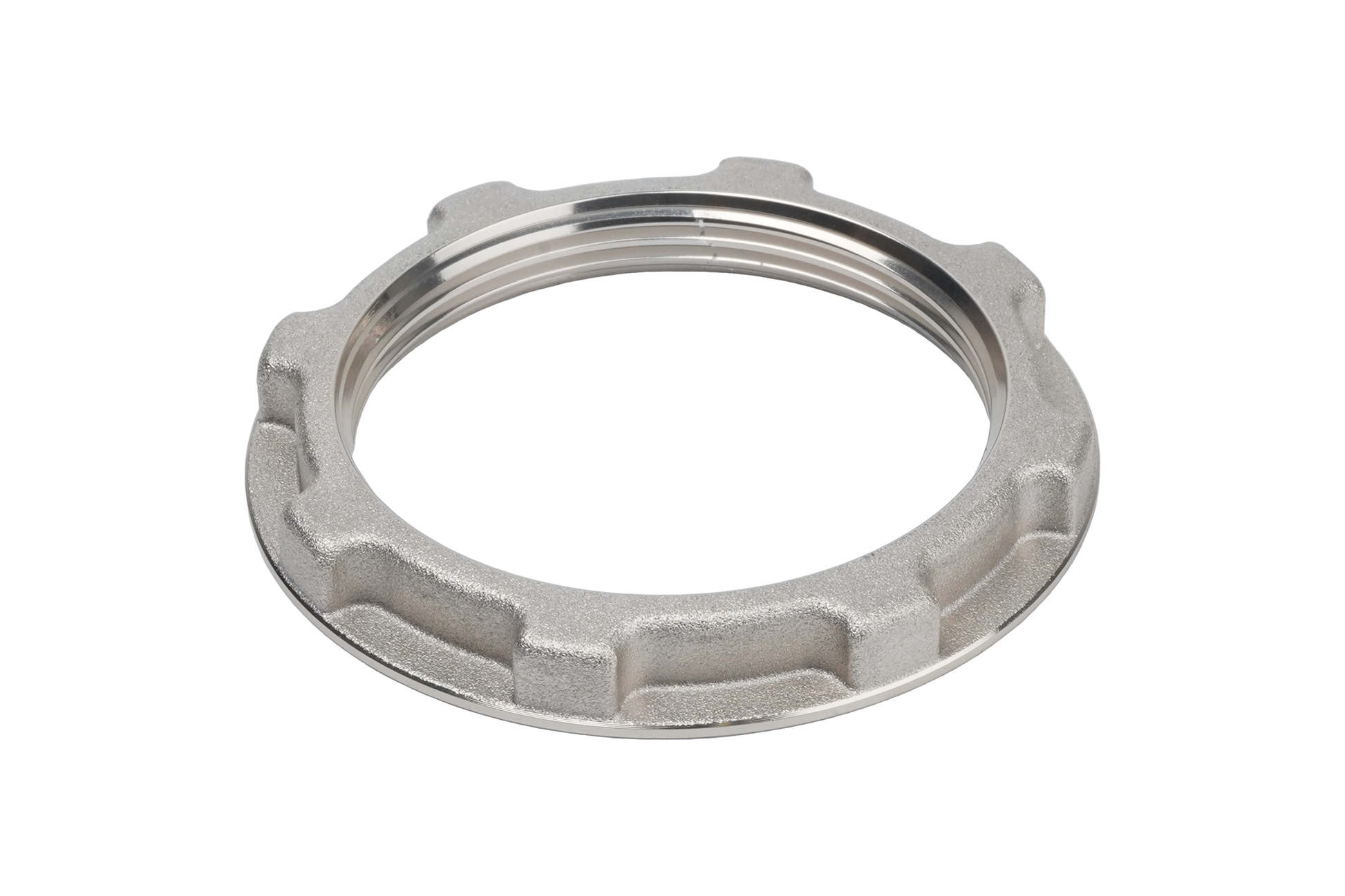

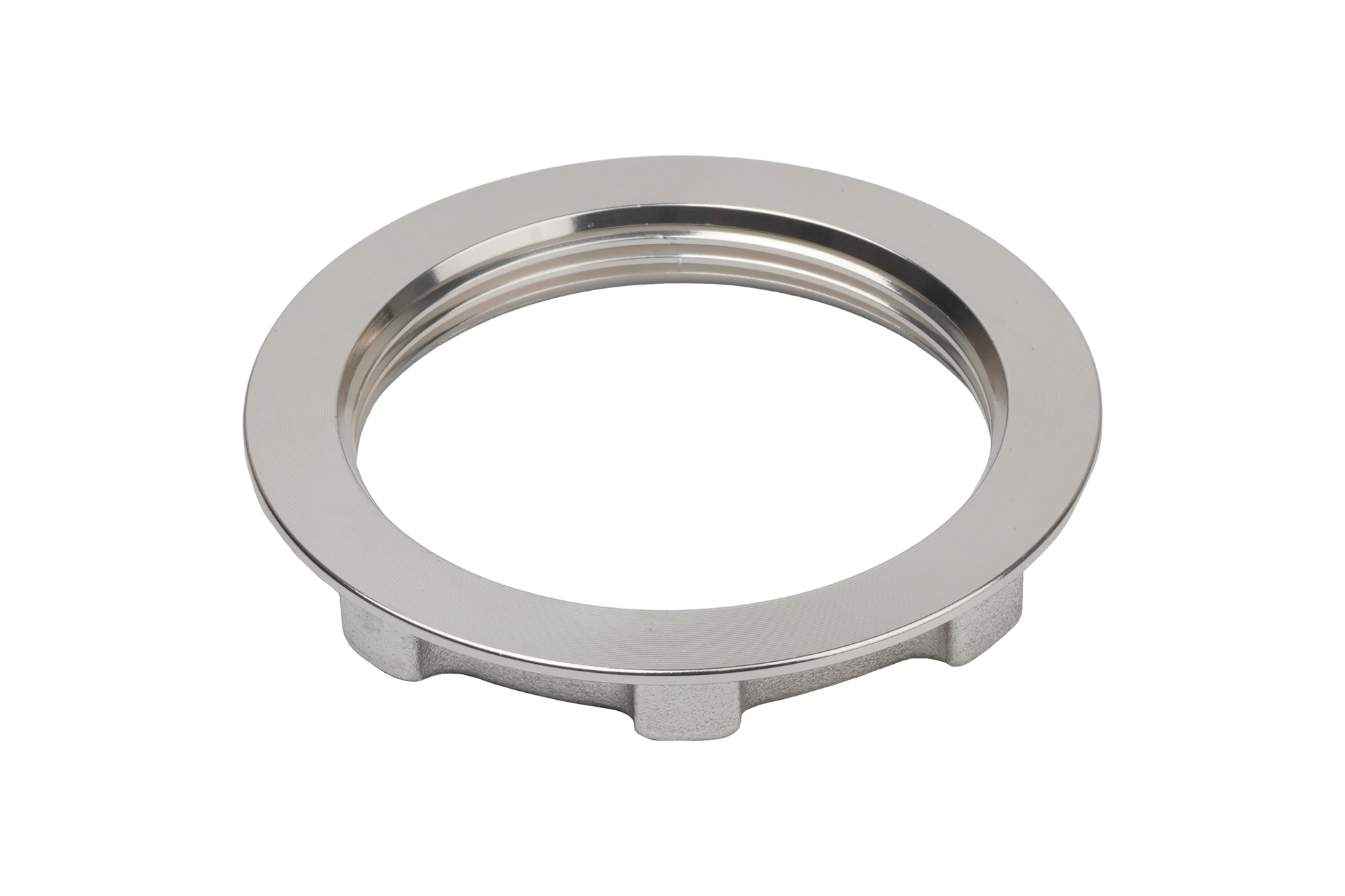

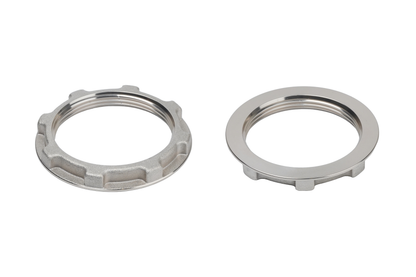

Front Mid Lower Lock Ring - MID-LK-RG-53
* Additional options value to be calculated in cart
BC Racing lock rings are manufactured of 6061-T6 aluminum. Lock rings are manufactured in three sizes; 53mm x P2.0 thread pitch, 50mm x P1.5 thread pitch, and 44mm x P1.5 thread pitch. Each lock ring is sandblasted then anodized to protect the ring from corrosion.
Most kits are fitted with 53mm lock rings. If you are unsure which lock rings to order you may call us at 321-206-6381, e-mail us at email@example.com, or measure the threaded portion of your shock body. If your shock body is 53mm, wrapping the threaded portion of the shock with US paper currency of any denomination will determine if you need a 53mm lock ring. Simply wrap a dollar bill, or bill of any denomination around the threaded portion of your shock. If the bill wraps and meets perfectly, your shock is 53mm and that is the size lock ring you need.
